A patch of water on the floor under your indoor unit is one of the most common service calls we get at AC Service Pro Subang Jaya. The good news is that almost nine out of ten cases come down to a drainage issue that a technician can resolve in a single visit. The bad news is that ignoring it for a fortnight can stain a plaster ceiling, swell a parquet floor, or short out a wall socket. None of those repairs are cheap.
This guide walks you through where condensate is supposed to go, the four places it tends to escape instead, and a simple triage you can run before booking a visit.
The Water Has to Go Somewhere
Air conditioners are dehumidifiers that happen to blow cold air. As warm room air passes over the freezing evaporator coil, moisture condenses on the fins the same way droplets form on a cold glass on a humid afternoon. In the kind of humidity Subang Jaya sees year-round, a single 1.0 HP bedroom unit can generate up to two litres of condensate per hour.
That water collects in a shallow plastic drain pan beneath the coil, then flows out through a 15 mm PVC drain line that runs through the wall to the outside of the building. When the leak shows up inside the room, something has interrupted that path. Tracing it is the entire game.
Step 1: Confirm It Is Actually Condensation
Before assuming a fault, rule out two harmless causes.
- Sweating insulation. On extremely humid days, the foam wrap around the copper pipes can sweat enough to drip. The fix is a thicker wrap, not a teardown.
- Refilled humidity. A unit running for a long stretch in a closed room with damp laundry produces more condensate than the drain can clear. Open a window for ten minutes and see if the drip slows.
If neither applies, you are looking at one of the four real fault paths below.

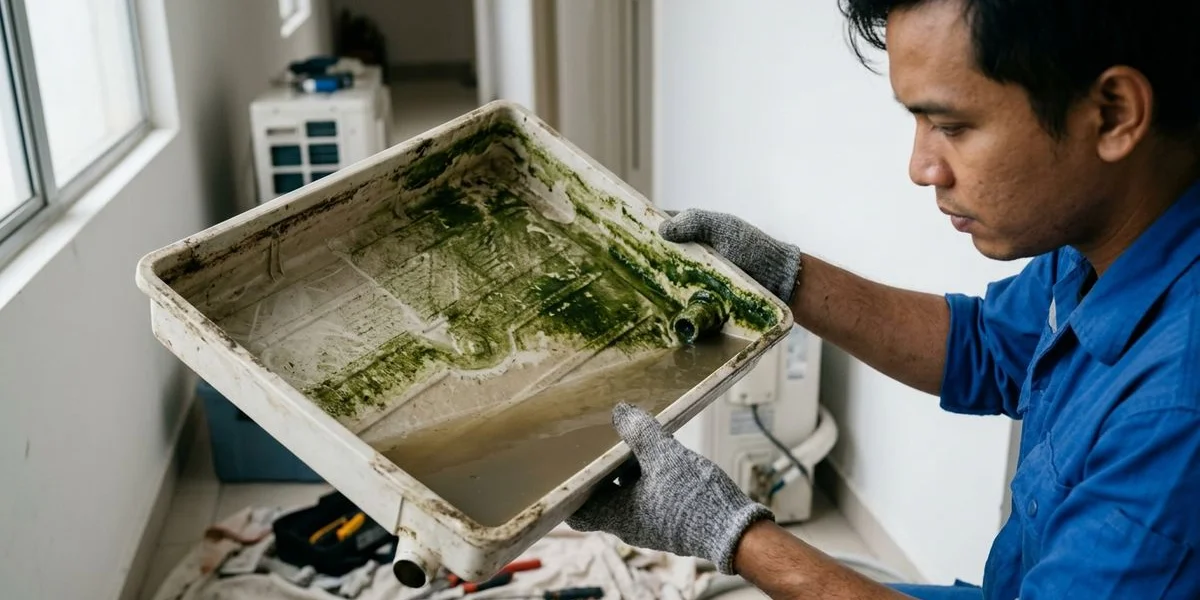

Path 1: Algae-Clogged Drain Line
This is the single most common culprit, accounting for more than half the leak calls we attend. The drain pan sits under the coil collecting every drop of condensation. It is dark, warm, and constantly wet, which is exactly the environment algae loves. Once the slime tightens the 15 mm PVC line, water backs up and spills out of the front of the indoor unit.
The quickest fix is a high-pressure flush of the drain line, usually done with nitrogen or a hand-pump bottle. If the unit is overdue for cleaning anyway, a full chemical wash attacks the algae at the source rather than just clearing the immediate blockage.
Path 2: A Unit That Lost Its Tilt
Indoor wall splits should be mounted with a deliberate slight tilt toward the drain outlet. Older buildings shift over time. Walls settle, mounting brackets work loose, and water starts collecting at the wrong end of the tray and spilling over the edge.
You can check this yourself with a cheap bubble level placed across the top of the unit. A half-degree off is enough to cause a leak.
Path 3: A Frozen and Then Thawing Coil
When low refrigerant or a blocked filter causes the coil to run below freezing, ice builds up across the fins. Once the ice thaws (usually when the unit cycles off), the sudden flood overwhelms the drain pan. The classic giveaway is a leak that arrives in waves, with heavy drips followed by long dry spells, plus visible white frost on the copper pipe at the outdoor unit.
Switch the unit off for at least two hours if you see this, then book a diagnostic. Running a frozen system damages the compressor.
Path 4: A Failed Drain Pump on Cassettes
Ceiling cassettes and concealed ducted units cannot rely on gravity. They use a small electric pump to lift the condensate up into the chase above the false ceiling. When that pump fails, the internal tray overflows and water drips from the corners of the ceiling grille rather than the unit itself.
This is a frequent failure on commercial cassettes that run twelve hours a day in F&B outlets and corporate offices around USJ 10. Pump replacements for Daikin and Acson typically run between RM150 and RM350 depending on capacity.
A Three-Question Triage You Can Run in Five Minutes
Before you book a visit, walk through these three questions. The answers usually tell us which fault path the leak is on, which means we bring the right parts on the first trip.
- Is water flowing from the outdoor drain outlet right now? If yes, the drain line is clear and the leak is upstream. If no, you have a blocked line.
- When the leak appears, is it a steady drip or a sudden flood? Steady means a clogged drain. Sudden floods following dry spells point to a freeze-thaw cycle or a failing cassette pump.
- Has the cooling performance dropped at the same time? If yes, suspect a coil freeze or refrigerant issue. If cooling is still fine, drainage is the lone fault.
How We Trace a Leak On Site
When a Subang Jaya customer books a leak repair, the technician runs a fixed sequence rather than guessing.
- Visual check of pan, tray, mounting tilt and copper insulation
- Drain line pressure test from the outdoor outlet back to the indoor pan
- Coil temperature reading to rule out a freeze condition
- Refrigerant pressure test if cooling has also dropped
- Drain pump electrical test on cassette and concealed units
The whole sequence takes about 30 minutes for a single split unit. At the end you receive a clear written diagnosis and a fixed quote before any repair starts.
When to Stop Troubleshooting and Switch It Off
Some leaks are urgent. If water is dripping near a power socket, soaking into drywall, or coming out brown and rusty, switch the unit off at the breaker and call a technician immediately. Plaster ceilings can collapse within 48 hours of a sustained drip, and the cost of water damage repair dwarfs the price of a proper aircond fix.
Book a Priority Leak Repair
We offer same-day leak repair across the area. WhatsApp us at 012-2252 623 with your unit details and a photo of the leak location if you can. A senior technician will reach you fast, the diagnostic fee is waived if you proceed with the repair, and every fix carries a 30-day workmanship warranty.
